TELEHOUSE SHANGHAI Jinqiao

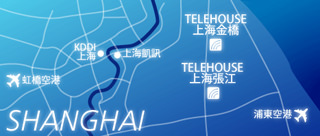

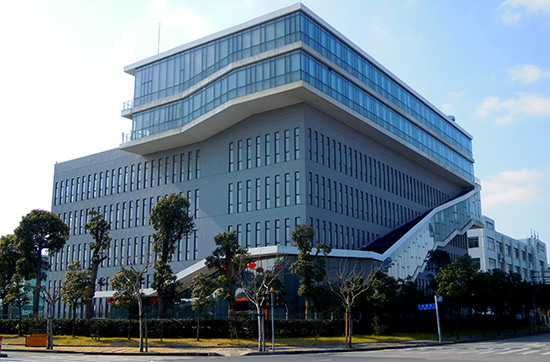

TELEHOUSE SHANGHAI Jinqiao data center* in Shanghai Pudong Jinqiao Export Processing Zone opened on 1st November 2013. It is a DC dedicated building with high spec facilities such as redundant power supply, high network connectivity and high security.
*TELEHOUSE SHANGHAI Jinqiao is actually operated by a Chinese local IDC, ISP operator, strictly based on TELEHOUSE Global Standards.
- Security ensured by Metallic sensor, X-ray detection machin, facial authentication
- Network career diversity and route diversity achieved.
- Provide colocation space and office dedicated spaces in office tower for customers with BCP and DR demands
- Power Supply System
Redundant power supply routes, solid UPS equipment, redundant generators and also distinctive designs such as below.
- Generators with long-time running capability
- Power supply from two substations
- External power supply bypass to cover UPS trouble
- Battery status monitoring for assuring UPS to work
- Continuous UPS battery check
- 2N power supply to racks (2 different routes to UPS) with backup UPS in case of emergency.
We consider various cases of emergency and make best effort to overcome it with our cutting-edge technologies.
- Air Conditioning System:
We adopt eco-friendly air conditioning system achieving high-efficiency and stability at the same time.
Free cooling system in winter times when temperature of outside air is very low, we use them to cool water for air conditioning to achieve low PUE.
- 2 Loop Lines - Dual For cool/hot water system
- Cold water tanks for air-conditioning in case of emergency
- Optimized air-conditioning according to the status of cabinet
- Heat insulation plate around the building. High efficient and trustable air conditioning system
- Security / Disaster Prevention:
Adopting face recognition system, X-ray detection machine and metal detector etc. to achieve solid security.
- Facial recognition
- X-ray detector
- Non-contact IC card
- Metal detector
- Building management system
- VESDA sensor
- IG541 gas extinguishing system
|Building||Location||Jinqiao Export Processing Zone|
|Provided Area||5,800㎡ *including future expansion|
|Raised Floor Height||750mm|
|Fire extinguisher||IG541 gas extinguishing system|
|Power Supply||Building Power|
|2 routes (from 2 substations)|
|Emergency Generator||N + 1|
|Power / Rack||Standard 2.0kVA (Over 3kVA needs consulting in advance)|
|Climate Control||CRAC Config||CRAC N+20%
Cooling system N+ 1
|Temp & Humidity||Temp : 22 ±2℃|
Humidity : 55% ± 10%
|Feeder type||Dual Feed (PDU A+B)||PDU: A+B, UPS: 2N|
|Network||Transport Carrier||CT, CU, CM|
|In-house Cabling||Coax, Copper/UTP/PSTN|
|O&M||Operation Hour||24/7 manned|
Language: Chinese and English
|Security||CCTV, IC card, Metal detector, X-ray detector, Face recognition system, Security guards|
|BCP Solution||Yes||Parking Space||in place|
- China Mobile(CM)
- China Telecom(CT)
- China Unicom(CU)
