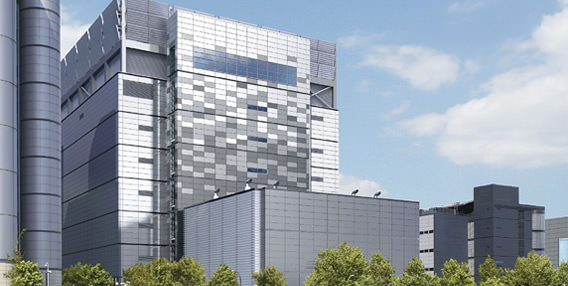

TELEHOUSE LONDON Docklands West

• Colocation & Hosting:

  • TELEHOUSE West can provide Shared Facilities Management (SFM),Dedicated Facilities Management (DFM) and high density rack hosting up to 10kW.
  • Fully managed half rack service with best of breed hardware.
  • TELEHOUSE provide hardware supply and maintenance service through gold partnerships with leading vendors.
• Power:

  • Average power per rack - 4kW
  • Four redundant HV power systems, from separate grids to each building on the Docklands site
  • 8 x 2.5MVA 11kV Generators with N+1 redundant standby generators with a minimum of 24 hours autonomy at full capacity
  • 2 (N+1) redundant UPS floor by floor
  • Redundant A & B power feeds to customer equipment
  • On-site primary substation with total capacity of 50MVA with cooling and two132kV power lines directly connected to the National Grid with two transformers providing N+N redundancy.
• Environment and Air Conditioning:

  • 6 x 2.7MW chillers N+2 configuration
  • Room Air Conditioning Units (RACUs) to provide down-flow chilled water system at N+25%
  • RACU with bunded floor area and water leakage detection and monitoring
  • Hot aisle/cold aisle zone design
  • 900mm raised floor design with airflow space to provide the most efficient cooling
  • Free cooling operation in winter
  • Maximum external ambient temperature of 35 degrees Celsius dry bulb
  • The in-room units will provide full function, closed control air conditioning, with cooling, humidity and de-humidification control.
• Connectivity:

  • Availability of wide connectivity to major telecoms and network service providers and offers customers connectivity to any telecom presence in the TELEHOUSE data centers.
  • Connectivity to 2 meet me rooms offering true diversity directly connectable from each tenant floor
  • Hosts the London Internet Exchange peering platform allowing low-latency connectivity
  • In 2012, LINX doubled the bandwidth capacity to 9.6TB at TELEHOUSE
• Fire Detection & Suppression:
  • Data center areas are fitted with a fully addressable two stage fire detection system that monitors both under-floor and the room itself
  • Detectors with 50% mix of optical and ionisation are split across 2 separate zonal-loops, to meet BS 5839, 6266, 5445 and 5588
  • Very early smoke detection alarms (VESDA) installed throughout the facility
  • Dry sprinkler fire detection system to meet BS 5306, 3115 and with LFEPA approval. Dry sprinkler is the main fire suppression method employed
  • The systems are designed to minimise any possible customer disruption and to ensure that any minor problems remain localised
• Security System:

  • Independent client card identification access system
  • Secure & monitored single-person point of entry, physically guarded 24/7 and integrated digital video camera surveillance
  • Proximity card access is provided from the main data center building and is issued to provide access only to authorised facilities management suites
  • Strict security processes are in place to ensure delivery and loading of goods are secure
  • CCTV coverage for the perimeter, common areas and facilities management suites
• Environment:
  • The TELEHOUSE London Docklands site is powered by 100% renewable energy
  • TELEHOUSE West has a built in waste heat exchange system facility to reuse lost heat to distribute to third parties and also pre-cool the chilled water, thus reducing both chiller and dry air cooler power requirements.
• Certifications:
  • ISO 9001:2008 Quality Management Standard
  • ISO/IEC 27001:2005 Information Security Management
  • PCI – DSS (Payment Card Industry – Data Security Standard) Attestation
  • BS 25999-2:2007 Business Continuity Management
  • ISO 14001 Environmental Standard and the Carbon Trust Standard
